1 / 105

Who thinks that frontend development has become more complex in the past 5 years?

2015 was the year of
»JavaScript Fatigue«2 / 105

People will remember the year of 2015 as the year of the JavaScript Fatigue

3 / 105

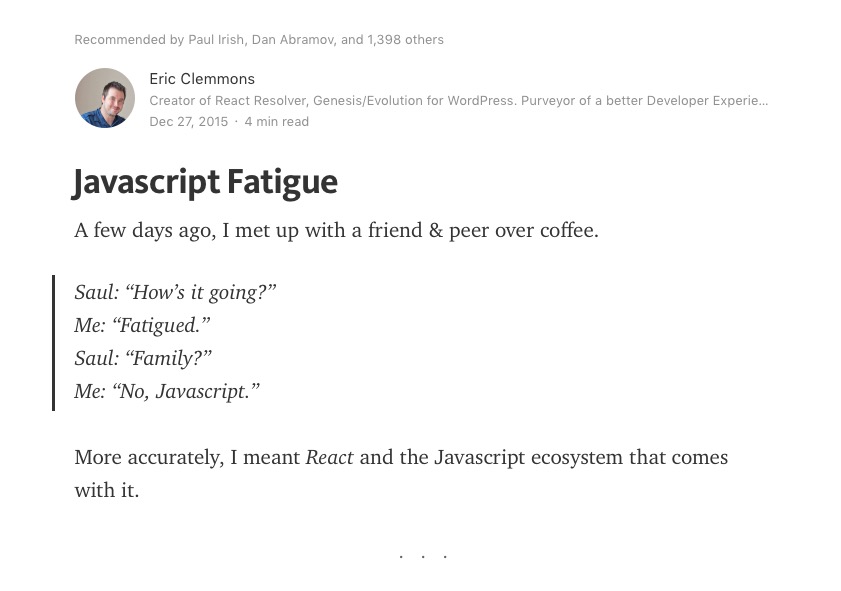

Excellent article by Eric Clemmons
Published in Dec 2015
About the explosion of libraries and tools in the JavaScript ecosystem


Custom languages
Linters
Bundlers
Minifiers
Devtools
Task runners
DOM libraries
Routing libraries
State libraries
Package managers

4 / 105

This was in the end of 2015...

5 / 105

This was in the end of 2015...

...but now it's 2016, so we're in the future, right?

6 / 105

Support of new web platform features
in modern browsers1


HTTP2	69%
ES2015	67%
Web Components	44%

HTTP2 from caniuse.com, ES2015 from kangax.github.io, Web Components from webcomponents.org.
All data was collected in July 2016. Please note: Only the most recent version of a browser was taken into account. This does not reflect the actual global distribution. Please note also: The Web Components specs have not been finished yet.

7 / 105

There are exciting new features
And browser support is getting better
How do these new features change the way we work?
Will we even need those tools at all?
That's the topic of my talk:

About the future
of frontend tooling

Johannes Ewald
Peerigon GmbH
@jhnnns

8 / 105

Johannes Ewald
Founded a company with my friends called Peerigon
Twitter handle: jhnnns

webpack core team

9 / 105

ES2015 modules10 / 105

ES2015
a.js
export default 42;
main.js
import magicNumber from "./a.js";
11 / 105

ES2015
a.js
export default 42;
main.js
import magicNumber from "./a.js";
CommonJS
a.js
module.exports = 42;
main.js
const magicNumber = require("./a.js");
12 / 105

ES2015 and CommonJS look very similar, but there are two important differences.

13 / 105

CommonJS
Dynamic imports possible
const a = require(pathToA);
// totally valid
ES2015
Only static imports
import a from pathToA;
// throws a SyntaxError
14 / 105

CommonJS
Copied values
a.js
exports.value = 42;
exports.incr = function () {
    exports.value++;
};
main.js
let { value, incr } = require("./a");
incr();
console.log(value); // 42
ES2015
Live values
a.js
export let value = 42;
export function incr() {
    value++;
}
main.js
import { value, incr } from "./a.js";
incr();
console.log(value); // 43
15 / 105

These properties make ES2015 modules less flexible than CommonJS...

16 / 105

These properties make ES2015 modules less flexible than CommonJS...

...but they're also the foundation for: Tree-shaking

17 / 105

Tree-shaking with ES2015
a.js
export let value = 42;
export function incr() {
    value++;
}
export function decr() {
    value++;
}
main.js
import { incr } from "./a.js";
incr();
18 / 105

Tree-shaking with ES2015
a.js
let value = 42;
export function incr() {
    value++;
}
main.js
import { incr } from "./a.js";
incr();
19 / 105

The static nature of ES2015 modules makes it possible
to trace all the exports that are actually used.

20 / 105

But...

...with a static module system, how do we load things on demand?

( ☉д⊙)

21 / 105

System.import() all the things!

22 / 105

There will be a way to load modules asynchronously:

System.import("some-module")
    .then(someModule => {
        ...
    })
    .catch(error => {
        ...
    });

23 / 105

But... things aren't finalized yet.

24 / 105

System.import() is very platform-specific and
many things need to be considered.

25 / 105

System.import() is very platform-specific and
many things need to be considered.

That's why it has been excluded from ES2015 and
will be specified as separate "Loader Standard".

26 / 105

So...

...once we can load modules natively in the browser,
do we need tools like browserify and webpack anymore?

ಠಿ_ಠ

27 / 105

Well...

...to answer this question, we should take
a look at another new technology first.

28 / 105

HTTP229 / 105

I won't talk about all the features of HTTP2 like header compression
Just the ones that might have a big impact on our tools

Feature 1:
HTTP2 is a binary protocol30 / 105

Requests and responses are streams.

31 / 105

Streams are divided into frames.

32 / 105

Frames can be interleaved.

33 / 105

Now we have multiple requests and responses simultaneously on a single TCP connection.

34 / 105

This eliminates HTTP1's problem of head-of-line blocking....
...and questions some of our best practices, like:

Bundling multiple resources into one file to avoid requests
Domain sharding

35 / 105

Head-of-line blocking = With HTTP 1.x we must wait for a response before sending the next request

Great!

So, let's get rid of all the bundlers and just include our development files.

(ノಠ益ಠ)ノ彡┻━┻

36 / 105

...not so fast...

(ヘ･_･)ヘ┳━┳

37 / 105

Problem 1:
Tree-shakingWhen there are no bundlers, who is doing the tree-shaking?

We still need a tool that operates on the dependency graph.
38 / 105

Problem 2:
MinificationWe still need a tool for HTML, CSS and JS minification.
39 / 105

Problem 3:
Compression

gzip compression is good at removing repetition.
It compresses one big file more effectively than many small files.

40 / 105

Problem 4:
RoundtripThe browser can only discover additional dependencies after
the response has been received and parsed.
41 / 105

42 / 105

Similar to head-of-line blocking
AKA: The AMD problem
Server push to the rescue

[Roundtrip Schaubild]

Feature 2:
Server push43 / 105

With HTTP2 the server is able to push a resource pro-actively to the client.
Now, when the client requests this resource, it becomes instantly available and cached.

44 / 105

Server: "I've just sent you index.html, you'll likely also need styles.css and user.jpg"
The resources are not directly cached, the client needs to make a request for it

What do we need to provide server push?

45 / 105

A dependency tree for each file:

index.html

{
  "/css/app.css": {
    "type": "style",
    "weight": 1
  },
  "/js/app.js": {
    "type": "script",
    "weight": 1
  }
}

Google's Push Manifest Proposal

46 / 105

A dependency tree for each file:

index.html

{
  "/css/app.css": {
    "type": "style",
    "weight": 1
  },
  "/js/app.js": {
    "type": "script",
    "weight": 1
  }
}

app.css

{
  "/img/logo.jpg": {
    "type": "image",
    "weight": 1
  }
}

Google's Push Manifest Proposal

47 / 105

How do we get this dependency tree?

48 / 105

How do we get this dependency tree?

traffic analysis using the Referer header
tools like bundlers which are able to figure out the dependency graph

49 / 105

Great!

So, let's figure out the dependency graph and push everything to the client.

(ノಠ益ಠ)ノ彡┻━┻

50 / 105

...not so fast...

(ヘ･_･)ヘ┳━┳

51 / 105

Problem 1:
Responsive imagesWe need information about the client because we don't want to

push high-resolution images to small screens.
52 / 105

Problem 2:
Cache

We need to know what the client has already cached,
otherwise we would waste precious bandwidth.

Proposed solution: Cache digests

53 / 105

Problem 3:
AuthorizationDon't push confidential resources to the client.

Push basically requires the same authorization flow as requests.
54 / 105

Problem 4:
Third-party serversResources from other servers like CDNs

cannot be pushed because we need an initial request.
55 / 105

Problem 5:
Prioritization

Pushing resources with no prioritization actually harms performance.

See https://docs.google.com/document/d/1K0NykTXBbbbTlv60t5MyJvXjqKGsCVNYHyLEXIxYMv0/preview

56 / 105

  <head>
    <link href="main.css" ...>
  </head>
  <body>
    <img src="heavy-image-1.jpg">
    <img src="heavy-image-2.jpg">
  </body>

CSS and fonts are render-blocking
Images are not
Wasting bandwidth on non render-blocking
resources harms perceived performance

57 / 105

HTTP2 provides a way to:

weigh each stream
pause, resume and cancel a stream

58 / 105

Weigh: "CSS and fonts are way more important than images"
Pause and resume: "Just get the image geometry and a small preview first"
Cancel: "Already in cache" (but some data has already been sent)

But a "good implementation" that takes everything
into account is very challenging and complex.

59 / 105

With HTTP1, head-of-line blocking actually prevented this kind of wrong prioritization.
We just needed to reference all the assets plus some meta data (like image dimensions) in the intended order.

  <head>
    <link href="main.css" ...>
    <style>
      @font-face {
        font-family: "MyWebFont";
        src:  url("myfont.woff2") format("woff2");
      }
    </style>
  </head>
  <body>
    <img width="1200" height="1000" src="heavy-image-1.jpg">
    <img width="1800" height="700" src="heavy-image-2.jpg">
  </body>

60 / 105

Web Components61 / 105

The vision62 / 105

You can think of Web Components as reusable user interface widgets that are created using open Web technology. They are part of the browser, and so they do not need external libraries like jQuery or Dojo. An existing Web Component can be used without writing code, simply by adding an import statement to an HTML page. https://developer.mozilla.org/en-US/docs/Web/Web_Components

63 / 105

Actually, web components is a fuzzy term
because it refers to 4 different technologies:

HTML templates
Custom elements
Shadow DOM
HTML imports

64 / 105

Custom elements, HTML imports and the shadow DOM have already gone
through several revisions which makes finding up-to-date information difficult.

65 / 105

Mozilla and Microsoft even decided to pause development on
HTML imports entirely until the ES loader spec has been finished.

66 / 105

HTML templatesProvide a way to define HTML fragments

that are parsed but not interpreted.
67 / 105

<template id="my-template">
  <style>
    /* this is not scoped! */
    h1 { color: red; }
  </style>
  <h1>My Template!</h1>
  <img src="some-img.jpg" />
  <script>
    function annoyUser(){
      alert("My template is ready!");
    }
    annoyUser();
  </script>
</template>

Templates are inert which means that by default:

no markup is displayed
no styles are applied
no images are loaded
no JavaScript is executed
the inner contents are invisible to selectors

template.content exposes the content as DocumentFragment which can be imported to get real DOM nodes.

68 / 105

Custom elementsA JavaScript API to register a custom implementation for arbitrary elements.
69 / 105

Current draft

Provides element lifecycle hooks:

class MyButton extends HTMLButtonElement {
  constructor() { ... }
  connectedCallback() { ... }
  disconnectedCallback() { ... }
  attributeChangedCallback() { ... }
}
customElements.define("my-button", MyButton);

<my-button></my-button>

70 / 105

Current draft

It is also possible to customize built-in tags:

customElements.define("my-button", MyButton, {
  extends: "button"
});

<button is="my-button"></button>

71 / 105

Shadow DOMEncapsulates and hides elements, styles and events behind a single element.

It also describes how content of the document tree is "transcluded" into the shadow tree.
72 / 105

The "heart" of the web components

Current draft
<template id="article-template">
  <header>
    <slot name="headline"></slot>
  </header>
  <div>
    <slot></slot>
  </div>
</template>
<article>
  <h2 slot="headline">My Headline</h2>
  <p>First paragraph</p>
  <p>Second paragraph</p>
</article>

const articles = document
  .querySelectorAll("article");
for (const article of articles) {
  const root = article.attachShadow({
    mode: "open"
  });
  const shadowTree = document
    .importNode(template.content, true);
  root.appendChild(shadowTree);
}

73 / 105

Children of the shadow host are projected into the slots of the shadow tree

HTML importsImport other HTML documents into the current one,

including all the templates, styles and scripts.
74 / 105

Current draft
<head>
  <link rel="import" href="blog-post.html">
</head>
<body>
  ...
  <script>
    const link = document.querySelector('link[rel="import"]');
    const post = link.import.querySelector("#blog-post");
    document.body.appendChild(post.cloneNode(true));
  </script>
</body>

Imported styles are applied on the importing document
Imported scripts are executed in the importing document's context
Imported HTML needs to be appended to the DOM via JavaScript

75 / 105

Great!

Let's get rid of all the frameworks and just write native web components.

(ノಠ益ಠ)ノ彡┻━┻

76 / 105

...not so fast...

(ヘ･_･)ヘ┳━┳

77 / 105

Problem 1:
Data flow

With web components, data is usually provided as
strings via attributes on the shadow host.

This may work for simple components, but not for
more complex ones like higher-order components.

<!-- do we want to write that? -->
<inbox mails="[{ subject: &quot;Hi there!&quot;... }]"></inbox>

78 / 105

Problem 2:
Imperative

Web components don't offer a declarative way to
describe DOM manipulations.

Do we really want to go back to manual DOM manipulation?

79 / 105

Problem 3:
Self-contained

While encapsulation is a good thing, true self-contained
web components from different sources may not be desirable.

Or do we like to end up with multiple versions of React,
Angular and Ember.js on the same page?

80 / 105

Problem 4:
Global namespaceWith HTML imports, the mistakes of the past are repeated since all the

styles and scripts are just imported into the global namespace.
81 / 105

Problem 5:
Flash of unstyled contentIf we fail to deliver the implementation of a custom element fast enough,

the browser will display the custom element as HTMLUnknownElement.
82 / 105

Problem 6:
No progressive enhancement

Web components are defined via JavaScript.
If something goes wrong, our web app will be broken.

This is also true for all SPA frameworks. With universal JavaScript,
however, we can always fall back to server-side rendering.

83 / 105

Conclusion84 / 105

This is biased
Based on my personal experience

Will ES2015 modules
change the way we work?85 / 105

Yesfinally a universal module format for JavaScript
avoids typical problems like namespace conflicts
enables tree-shaking through static analysis
encapsulates platform semantics in loader implementations

86 / 105

Will HTTP2 change
the way we work?87 / 105

Yesbinary streams invalidate former best-practices
we have a more fine-grained control over optimization
server push provides a new way to deliver resources separately

88 / 105

But...

...in order to leverage streams and server push, we need:

to weigh and control these streams
sophisticated server implementations
tools that feed these servers with valuable information about our web app
careful and automated testing

And when it doubt, we should stick to old best-practices where appropriate.

89 / 105

Valuable information like: Which resources are render-blocking?

Will web components change
the way we work?90 / 105

Yesthey provide new DOM primitives for future frameworks
they make the platform itself more customizable

91 / 105

But...they don't provide tools to actually compose a more complex web app
they don't provide ways to deliver these components efficiently
they can also make the platform more fragile

92 / 105

How will frontend development look
like in the next years?93 / 105

We will use...

94 / 105

We will use...

...tools like Babel, PostCSS and ESLint that expose "hackable" ASTs1...
1. Abstract Syntax Tree

95 / 105

We will use...

...tools like Babel, PostCSS and ESLint that expose "hackable" ASTs1...
1. Abstract Syntax Tree
...and provide plugins and presets

96 / 105

We will use...

...tools like Babel, PostCSS and ESLint that expose "hackable" ASTs1...
1. Abstract Syntax Tree
...and provide plugins and presets
...languages with explicit exports/imports to avoid namespace collisions

97 / 105

We will use...

...tools like Babel, PostCSS and ESLint that expose "hackable" ASTs1...
1. Abstract Syntax Tree
...and provide plugins and presets
...languages with explicit exports/imports to avoid namespace collisions
...and to allow static analysis

98 / 105

We will use...

...tools like Babel, PostCSS and ESLint that expose "hackable" ASTs1...
1. Abstract Syntax Tree
...and provide plugins and presets
...languages with explicit exports/imports to avoid namespace collisions
...and to allow static analysis
...languages like JSX that embed other languages into ES2015 modules

99 / 105

We will use...

...tools like Babel, PostCSS and ESLint that expose "hackable" ASTs1...
1. Abstract Syntax Tree
...and provide plugins and presets
...languages with explicit exports/imports to avoid namespace collisions
...and to allow static analysis
...languages like JSX that embed other languages into ES2015 modules
...bundlers that compose ES2015 modules

100 / 105

We will use...

...tools like Babel, PostCSS and ESLint that expose "hackable" ASTs1...
1. Abstract Syntax Tree
...and provide plugins and presets
...languages with explicit exports/imports to avoid namespace collisions
...and to allow static analysis
...languages like JSX that embed other languages into ES2015 modules
...bundlers that compose ES2015 modules
...and "tree-shake" unused parts

101 / 105

We will use...

...tools like Babel, PostCSS and ESLint that expose "hackable" ASTs1...
1. Abstract Syntax Tree
...and provide plugins and presets
...languages with explicit exports/imports to avoid namespace collisions
...and to allow static analysis
...languages like JSX that embed other languages into ES2015 modules
...bundlers that compose ES2015 modules
...and "tree-shake" unused parts
...tools that analyze the critical rendering-path

102 / 105

We will use...

...tools like Babel, PostCSS and ESLint that expose "hackable" ASTs1...
1. Abstract Syntax Tree
...and provide plugins and presets
...languages with explicit exports/imports to avoid namespace collisions
...and to allow static analysis
...languages like JSX that embed other languages into ES2015 modules
...bundlers that compose ES2015 modules
...and "tree-shake" unused parts
...tools that analyze the critical rendering-path
...and optimize for the first meaningful paint

103 / 105

We will use...

...tools like Babel, PostCSS and ESLint that expose "hackable" ASTs1...
1. Abstract Syntax Tree
...and provide plugins and presets
...languages with explicit exports/imports to avoid namespace collisions
...and to allow static analysis
...languages like JSX that embed other languages into ES2015 modules
...bundlers that compose ES2015 modules
...and "tree-shake" unused parts
...tools that analyze the critical rendering-path
...and optimize for the first meaningful paint
...server-side rendering as fallback strategy

104 / 105

─=≡Σ((( つ•̀ω•́)つLET’SGO!

105 / 105

Help

Keyboard shortcuts

↑, ←, Pg Up, k

Go to previous slide

↓, →, Pg Dn, Space, j

Go to next slide

Home

Go to first slide

End

Go to last slide

Toggle blackout mode

Toggle fullscreen mode

Clone slideshow

Toggle presenter mode

Pause/Resume the presentation

Restart the presentation timer

?, h

Toggle this help

2015 was the year of»JavaScript Fatigue«

...but now it's 2016, so we're in the future, right?

HTTP2

ES2015

Web Components

About the futureof frontend tooling

ES2015 modules

But...

So...

Well...

HTTP2

Feature 1:HTTP2 is a binary protocol

Great!

Problem 1:Tree-shaking

Problem 2:Minification

Problem 3:Compression

Problem 4:Roundtrip

Feature 2:Server push

Great!

Problem 1:Responsive images

Problem 2:Cache

Problem 3:Authorization

Problem 4:Third-party servers

Problem 5:Prioritization

Web Components

The vision

HTML templates

Custom elements

Shadow DOM

HTML imports

Great!

Problem 1:Data flow

Problem 2:Imperative

Problem 3:Self-contained

Problem 4:Global namespace

Problem 5:Flash of unstyled content

Problem 6:No progressive enhancement

Conclusion

Will ES2015 moduleschange the way we work?

Yes

Will HTTP2 changethe way we work?

Yes

But...

Will web components changethe way we work?

Yes

But...

How will frontend development looklike in the next years?

2015 was the year of»JavaScript Fatigue«

Help

2015 was the year of
»JavaScript Fatigue«

About the future
of frontend tooling

Feature 1:
HTTP2 is a binary protocol

Problem 1:
Tree-shaking

Problem 2:
Minification

Problem 3:
Compression

Problem 4:
Roundtrip

Feature 2:
Server push

Problem 1:
Responsive images

Problem 2:
Cache

Problem 3:
Authorization

Problem 4:
Third-party servers

Problem 5:
Prioritization

Problem 1:
Data flow

Problem 2:
Imperative

Problem 3:
Self-contained

Problem 4:
Global namespace

Problem 5:
Flash of unstyled content

Problem 6:
No progressive enhancement

Will ES2015 modules
change the way we work?

Will HTTP2 change
the way we work?

Will web components change
the way we work?

How will frontend development look
like in the next years?

2015 was the year of
»JavaScript Fatigue«
